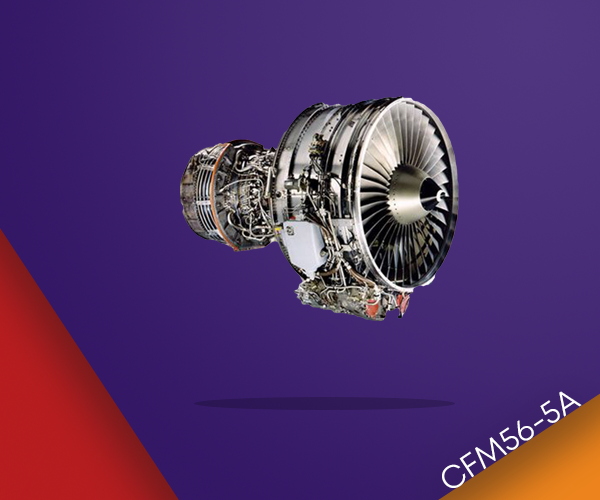

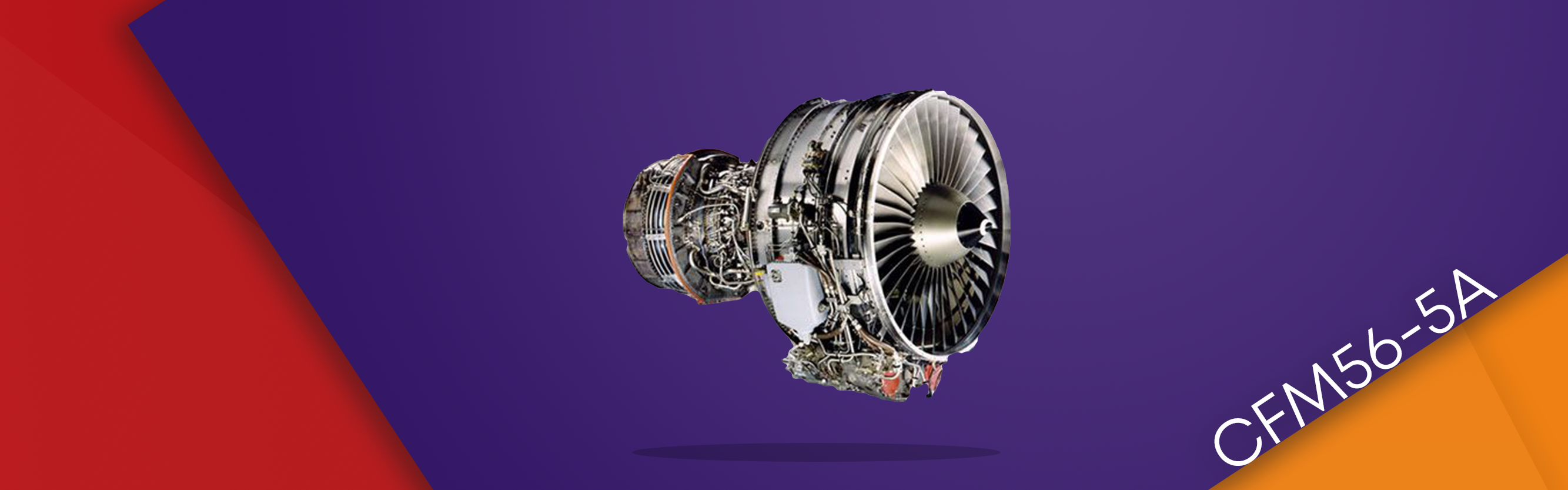

CFM56-5A Turbofan Series of Engines
Celerity Aero Capital specializes in the acquisition of CFM56-5A series mid- to late-life engines with few exceptions.
CFM56-5A Series of Engines : CFM56-5A series of high-bypass turbofan
aircraft engines made by CFM International (CFMI). The CFM56-5A series is the initial
CFM56-5 series, designed to power the short-to-medium range Airbus A320 family. Derived from
the CFM56-2 and CFM56-3 families, the -5A series produces thrusts between 22,000 and 26,500
lbf (98 kN and 118 kN). Aerodynamic improvements such as an updated fan, low-pressure
compressor, high-pressure compressor and combustor make this variant 10–11% more fuel
efficient than its predecessors.
| First Flight | 1987-02-22 |
| National Origin | France, United States |
| Introduction | Introduced : April 1988 : with Air France |
| Produced | 1988-2020 |
| Number Built | 9,860 as of July 2016 |
| Developed Into | CFM International LEAP, General Electric Affinity, General Electric GE90 |
| Company | CFMI |
| Variant | CFM 56- 5A |

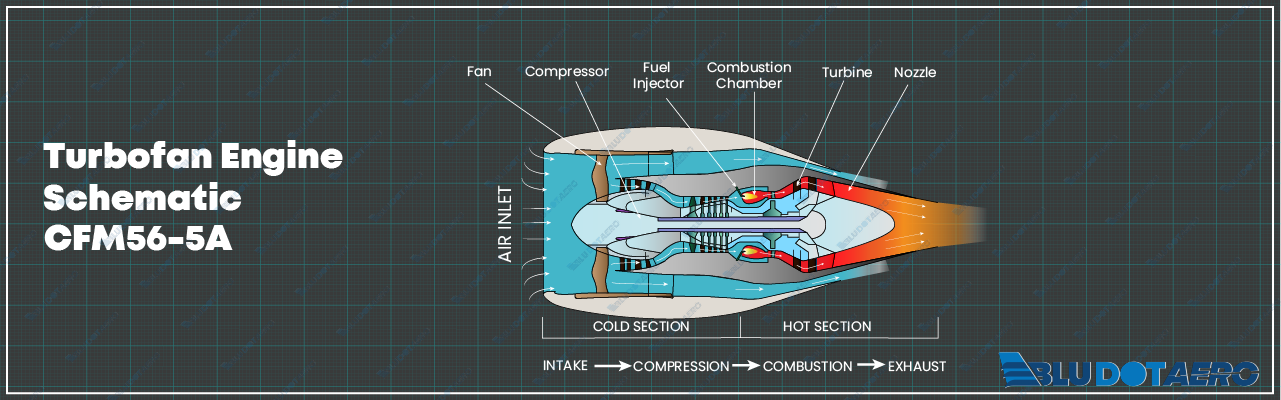

| Type | Dual rotor, axial flow, high bypass ratio turbofan |
| Combustor | Annular (double annular for -5B/2 and -7B/2 "DAC") |
| Compressor | 1 fan, 3 LP, 9 HP |
| Turbine | 1 HP, 4 LP |
| Control | Dual FADEC |

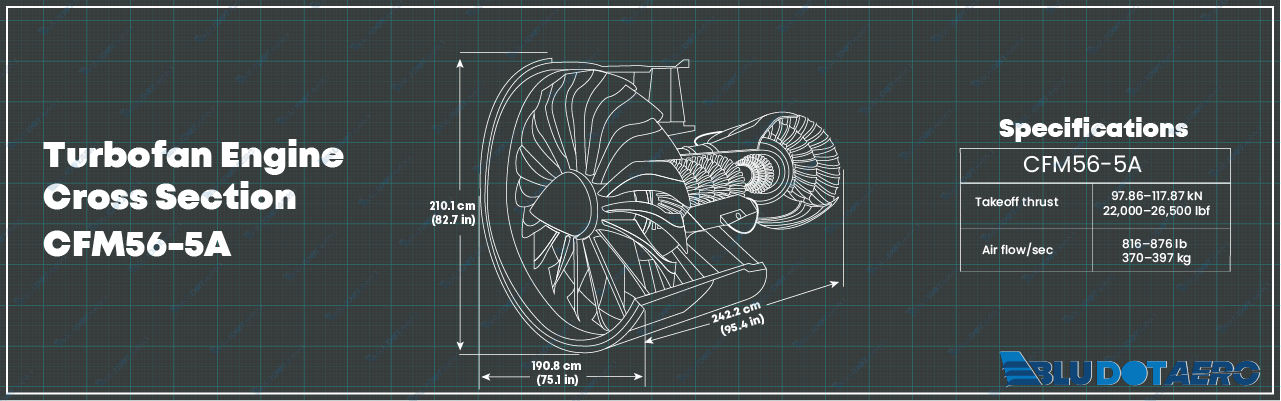

| Width | 190.8 cm (75.1 in) |

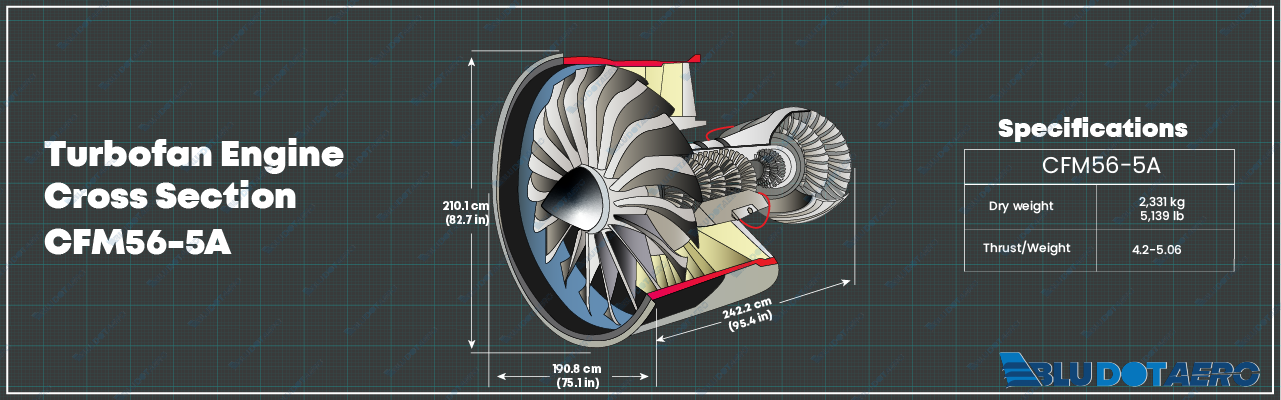

| Dry weight | 2,331 kg (5,139 lb) |

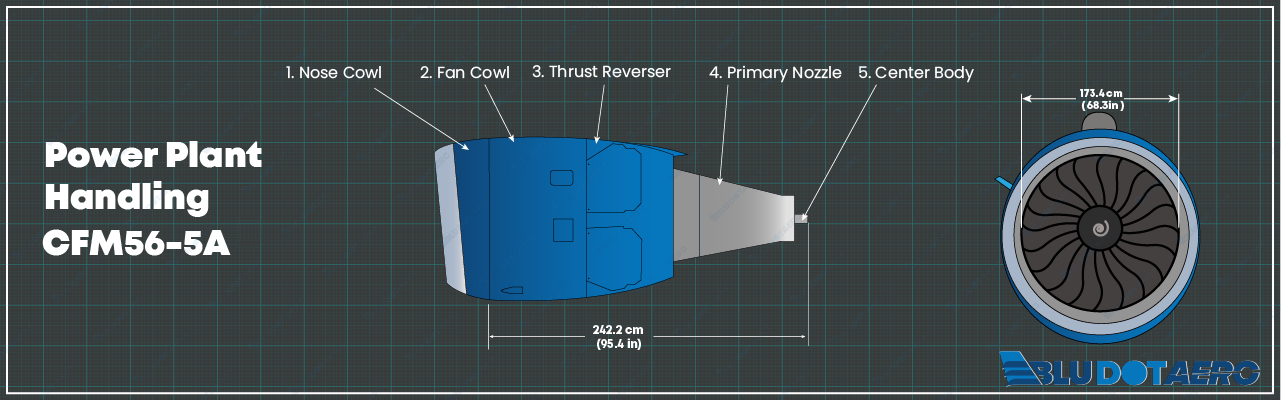

| Length | 242.2 cm (95.4 in) |
| Height | 210.1 cm (82.7 in) |
| Takeoff thrust | 97.86–117.87 kN (22,000–26,500 lbf) |
| Thrust/weight | 4.2-5.06 |
| 100% RPM | LP 5000, HP 14460 |
| Air flow/sec | 370–397 kg (816–876 lb) |
| Bypass ratio | 6.0-6.2 |
| Max OPR | 31.3 |
| Fan diameter | 68.3 in (173 cm) |
| Takeoff TSFC | 9.39 g/(kN⋅s) (0.3316 lb/(lbf⋅h)) |
| Cruise TSFC | 9.39 g/(kN⋅s) (0.3316 lb/(lbf⋅h) ) |
| Application | Airbus A319, Airbus A320 |
Narrowbody Market- 737NG/ A320 CEO
Market:
The Boeing 737 and the Airbus A320
families are considered the workhorses of the
global
aviation sector. The Boeing 737 NG and the Airbus
A320 CEO family both fly CFM-56 engines.
CFM-56
family is designed, developed, and produced by CFM
International. The CFM 56-7B exclusively flies on the Boeing
737 NG (100% Market Share). While CFM-56 5 Series (5A and
5B) have a 60/40 split on the A320 Family of aircraft with
the V2500 manufactured by International Aero Engines (IAE).
With the CFM-56 family of engines having an overall
narrowbody market share of 60% delivery over 25575
engines.
CFM 56 – 5 A Series Market:
Over
836 CFM 56 – 5 A series engines have been produced as of
2020. The engines were built to support the A318, A319
and A320 CEO series of aircraft. The engines were
replaced by the CFM56-5B series. An estimated 510CFM
56 – 5 A series engines are in operation.
| Metric | Value | Dates | Note |
|---|---|---|---|
| Total Produced | 836 | Nov 22, 2022 | |
| Average Production | 70 | Nov 22, 2022 | |
| Peak Production | 158 | Nov 22, 2022 | |
| Status | in Service | Nov 22, 2022 |
CFM 56 - 5A - Engine Fleet Status - Total Engines Produced
CFM 56 - 5A - Annual Engine Fleet Adjustments
CFM 56 - 5A - Annual Fleet Ownership
| Item | Value | Note |
|---|---|---|
| Total Deliveries | 836 | |
| Total Orders | 836 | |
| Total Backlog | 0 |
| Years | Total Deliveries | Total Orders | Total Backlog |
|---|---|---|---|
| 1999 | 36 | 36 | 0 |
| 1998 | 36 | 36 | 0 |
| 1997 | 55 | 55 | 0 |
| 1996 | 37 | 37 | 0 |
| 1995 | 32 | 32 | 0 |
| 1994 | 64 | 64 | 0 |
| 1993 | 95 | 95 | 0 |
| 1992 | 147 | 147 | 0 |
| 1991 | 158 | 158 | 0 |
| 1990 | 77 | 77 | 0 |
| 1989 | 77 | 77 | 0 |
| 1988 | 22 | 22 | 0 |
| Variant Model | Thrust | BPR | OPR | Dry Weight | Applications |
|---|---|---|---|---|---|
| CFM56-5B9 | 23,300 lbf (100 kN) | 5.9 | 32.6 | 5,250 lb (2,380 kg) | Airbus A318, A318CJ |
| CFM56-5A1 | 25,000 lbf (111 kN) | 6 | 31.3 | 4,995 lb (2,270 kg) | Airbus A320 |
| CFM56-5A3 | 26,500 lbf (118 kN) | 6 | 31.3 | 4,995 lb (2,270 kg) | Airbus A320 |
| CFM56-5A4 | 22,000 lbf (97.9 kN) | 6.2 | 31.3 | 4,995 lb (2,270 kg) | Airbus A319 |
| CFM56-5A5 | 23,500 lbf (105 kN) | 6.2 | 31.3 | 4,995 lb (2,270 kg) | Airbus A319 |
| Engines | Certification Date | Aircraft Model |
|---|---|---|
| CFM56-5A1 or 5A1/F | A320-111 | |
| CFM56-5A1 or 5A1/F | A320-211 | |
| CFM56-5A3 | A320-212 | |
| CFM56-5A1 or 5A1/F | A319-113 | |
| CFM56-5A5 or 5A5/F | A319-114 |
